Azimuth Motor Assembly

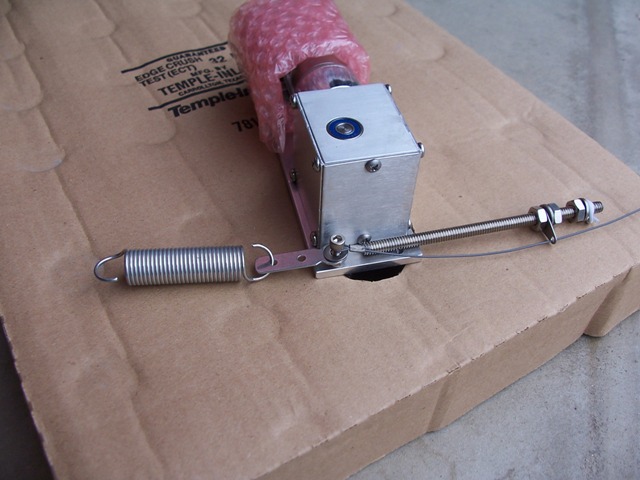

Spring keeps tension on motor to keep it against the round ground board. Bolt will be connected to
a level to disengage (pull the motor) off the round ground board.

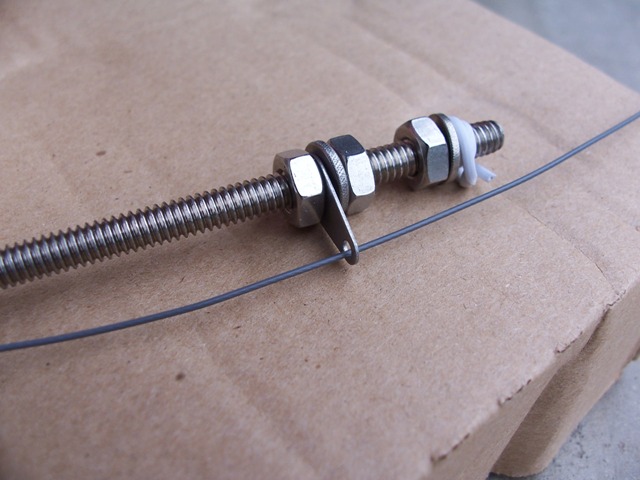

Closeup of the tear drop piece that will anchor the end of the disconnect cable.

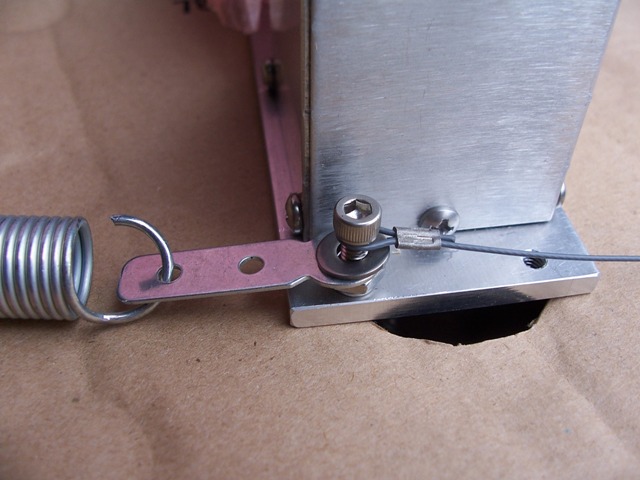

Closeup of pulling points on motor.

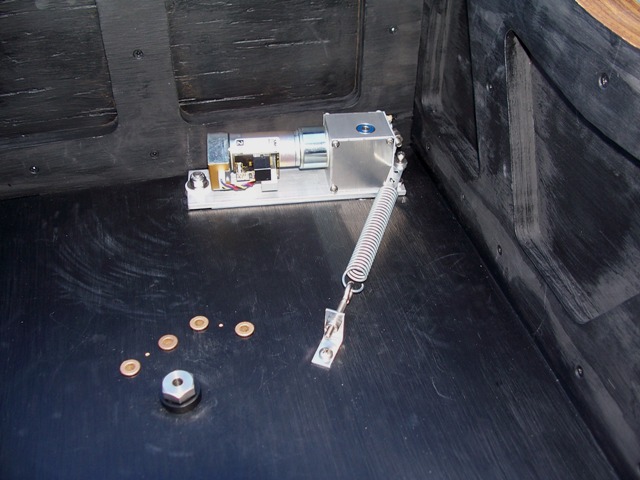

Completed motor installation
inside Rocker Box Base.
Closeup of the pull-pull tension engage
and cable pull disengage mechanism

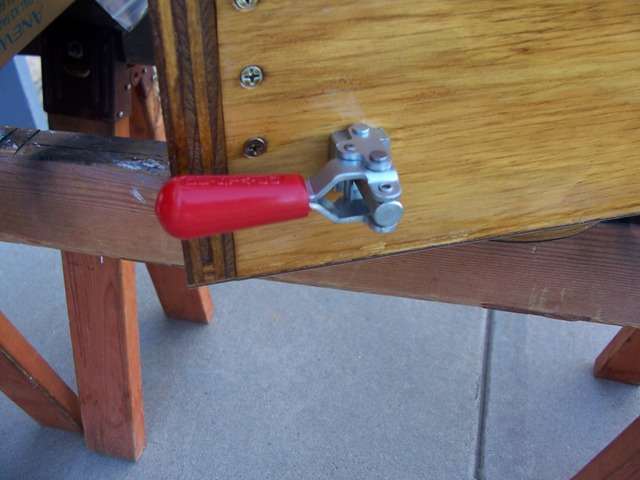

The Azimuth Motor Engage/Disengage Handle

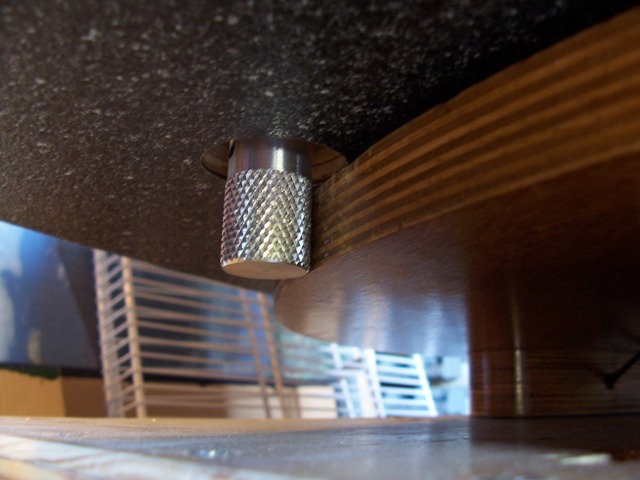

Handle Engaged forces drive against Ground Board
